CNC Milling: Welcome to CNC MASTERS, Inc.

CNC Supra Vertical Milling Machine Catalogue & Ordering Inquiry Form:



Turn-Key Operation for any beginner or experienced machinist who needs a user-friendly easy to use cnc control to begin cutting parts the same day it arrives!   The CNC SUPRA Vertical Knee Mill provides the strength and durability of a manual driven bridgeport-type vertical knee mill. The ingenuity of the CNC Supra Knee Mill can machine your intricate and detailed parts through automation technology, while still giving you the option to manually machine your simple parts through the use of the axis' hand wheels.  Improve your productivity with ease!
•  Small companies: Why pay thousands for out-sourcing when you can machine your own parts at a fraction of the cost?
•  Large companies: Why pay thousands for a CNC machine that come with all the extras bells and whistles to cut out a simple part day in and day out?
SAVE YOUR BUDGET, TIME, AND BEGIN CUTTING PARTS THE SAME DAY!
SEE VIDEO DEMO
PRODUCT BROCHURE

NEED FINANCING? -- Click here for an online application. CNC MASTERS has collaborated with First Pacific Funding to make the leasing of your new CNC Masters machine an easy application process for your business.

Item

CNC SUPRA Deluxe Package: (Best Deal !!!)

Price
Baron
This package is recommended for the user who needs a complete machining system on delivery.  The SUPRA DELUXE PACKAGE includes the: CNC SUPRA Vertical Knee-Type Mill 9x49 Table with Variable Spindle Speed Computer Control: A ready to run 3 axis CNC bridgeport-type knee mill, user friendly MASTER Software with G-CODE file interpreter, X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC) 3HP Spindle Motor with variable speed control (requires single phase 240 VAC), Built-In Re-Circulating Computer Control Coolant Pump with hose, and flex nozzle, 52PC Clamping Set, 11 PC R8 Round Collets Set by 16ths, 20 PC Titanium Coated End Mills Set, AV-6" Precision Milling Machine Vise, full 360 degree swivel base with graduation, and our exclusive Hand-Held Remote Control
........................................... $11,150.00
Add RHINO CAD 4.0 & VisualMill 6.0 software to your Deluxe Package
.............................................. $1,700.00

Item

CNC Supra Choice Two (Great Deal !!)

Price
Baron
 CNC SUPRA Vertical Knee-Type Mill 9x49 Table with Variable Spindle Speed Computer Control:A ready to run 3 axis CNC bridgeport-type knee mill, user friendly MASTER Software with G-CODE file interpreter, X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC) 3HP with variable speed control (requires single phase 240 VAC)

.......................................... $10,098.00

Add an AV-6" Precision Milling Machine Vise, full 360 degree swivel base with graduation
................................................. $125.00

Item

CNC Supra Choice Three: (Good Deal !)

Price
Baron

CNC SUPRA Vertical Knee-Type Mill 9x49 Table:A ready to run 3 axis CNC bridgeport-type knee mill, user friendly MASTER Software with G-CODE file interpreter, X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC) 2HP single phase 8 speeds (requires single phase 220 VAC)

............................................ $9,498.00  Add an AV-6" Precision Milling Machine Vise, full 360 degree swivel base with graduation

$125.00

CNC Supra Choice Four:

CNC SUPRA Vertical Knee-Type Mill RETROFIT KIT: It includes the 3 axis CNC Control Unit, X, Y, & Z ball screws with pre-loaded ball nuts, motors for X, Y, and Z with mounting brackets, hand-wheels, and hardware.  Detailed assembly instructions, Master software with G-CODE file interpreter. (Approx. 6-8 hours assembly time and Control Unit require single phase 115 VAC)

........................................... $5,148.00

ACCESSORIES:

Item

Description

Price

Package F:



$3,745.00

Individual Pieces, More Accesories and Kits:

Fourth Axis 6" CNC Rotary Table, can work with the CNC Jr./Baron or the CNC Supra Milling Machines.  The Driver will be built into the CNC Control Unit and operated by the Master Software.

$1,474.00

Hand-Held Remote Control including joy stick control, spindle and feed controls, high resolution micrometer handle, go and panic buttons.  Allows you to jog your three axes by hand without using your computer keyboard.  Great for the CNC Jr or Supra Mill to easily align your initial home position or machine simple parts with the joystick.
$485.00

CNC SUPRA Knee Lift Power Feed Add-On

Add a 150lbs power feed (110vac) to your CNC Supra Knee Mill Order.  This will eliminate having to crank the "back-breaking"  knee lift by hand. Comes installed with your CNC Supra Mill order
$599.00

Engraving Attachments:

"AIR TURBINE" Air Driven Spindle Model 625JS with 40,000 RPM, for jewelry, mold making, and fine engraving/detailing (requires air compressor 90 psi) Attachment in: 1/4" collet w/3/4" shank
Air Spindle comes with Oil Trap Assembly and Case.


$2,898.00
CNC Supra Engraver Attachment with 1/8, 5/32, and 1/4 collets for Engraving or Fine Machining Detail which attaches to the Quill of CNC Supra Mill only. 30,000 RPMs (requires 110VAC)....
$575.00

CNC Supra Built-In Re-Circulating Coolant System which includes computer control pump, tubing, mounted flex nozzle and key to the side of the quill.  This coolant accessory is designed to be used with the purchase of a CNC SUPRA Knee Mill
$229.00

Computer Controlled  Variable Spindle Inverter Upgrade Kit
Customers needing computer controlled variable spindle speeds can now mount this inverter to their existing CNC Jr. Mill or CNC Supra Mill or add it on to your Jr./Supra Retrofit Kit order.
*Three phase motor is required.  (2HP, Jr.) (3HP, SUPRA)
CNC SUPRA Variable Spindle Inverter Kit
$775.00*


Quick Tool Change:
R8 Easychange Tool Master Holder
(Tool Master Holder is needed for the easychange holders below)
$515.00
Easychange End Mill Holder, bore size 1/8"
$160.00
Easychange End Mill Holder, bore size 3/16"
$160.00
Easychange End Mill Holder, bore size 1/4"
$160.00
Easychange End Mill Holder, bore size 3/8"
$160.00
Easychange End Mill Holder, bore size 1/2"
$160.00
Easychange End Mill Holder, bore size 5/8"

$160.00
Easychange End Mill Holder, bore size 3/4"
$170.00
Easychange Drill Chuck Adapter for J33 chuck
$140.00
Easychange Drill Chuck Adapter for J2 chuck
$140.00

52PC Clamping Set:  5/8" for the CNC Jr. or the CNC Supra Mills includes:
  • 24 Studs (4 of each):  3", 4 ", 5 ", 6", 7", 8" long
  • 4 Coupling units
  • 6 Flange nuts
  • 6 Forced steel clamps, 2 each based on stud sets
  • 6 T-Nuts
  • 6 Steel step blocks
  • 1 Wall Rack
$68.00

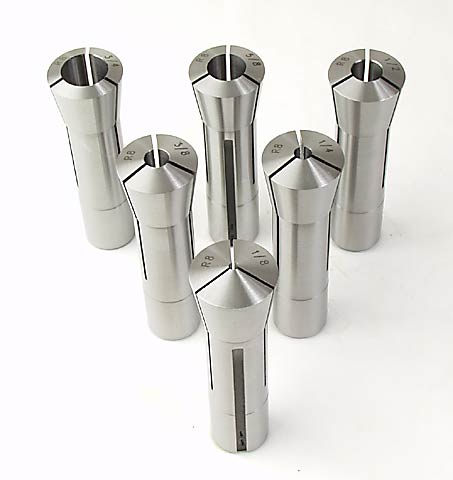

Range in size from 1/8" to 3/4" by 1/16ths.
6pc set range in size from 1/8" to 3/4" by 8ths.
11 PC R8 Round Collets Set by 16ths
$76.00
20 PC Titanium Coated End Mills Set
  • TIN coated for longer lasting
  • High Speed steel
  • Center Cutting, single end
  • Complete with wooden case.
  • 10pcs: 2 flute 3/16"-3/4" by 16ths
  • 10pcs: 4 flute 3/16"-3/4" by 16ths
$110.00

6 PC HSS End Mills Set
6 piece HSS end mill set includes 2 flute center cutting end mills in the following sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 1/2". All the end mills have a 3/8" shank.
$22.00

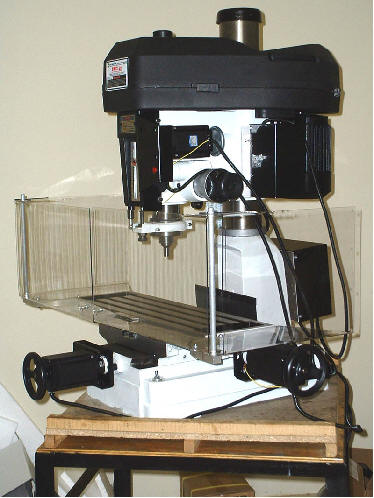

CNC Jr. Splash Guard Shield Kit
Protect most of your work area from coolant and debris.  (Assembly and installation required.)
$225.00

SOFTWARE PACKAGES:

VisualMill 6.0  "CAM" Software is ideal for the rapid-prototyping, hobby and educational markets where ease of use is a paramount requirement. Packed with sufficiently powerful manufacturing methods, easy to use package is not only effective but also attractively priced for the budget conscious or entry level buyer

(WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.)
CALL
OR
EMAIL
 US FOR PRICING.
  VisualMill 4th Axis CAM ADD-ON will allow you to create g-codes for the 4th axis that comes with your cnc mill or retrofit kit.  If you plan to use a 4th axis rotary table, then purchasing this add-on will be a worthy investment....   (Must be bundled with Basic 5.0)
$950.00

RHINO 4.0 "CAD" Software features a 3-D modeling system that can create, edit, analyze, and translate NURBS curves, surfaces, and solids in Windows.  VisualMill can read Rhino's native format files (.3dm) directly (without translation) and generate cutter paths accurately and efficiently, ensuring 100% direct translation capabilities.  (Definitely one of the best CAD programs in the market today!  Easy to learn and use--and design the intense detailed parts.)
WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.

CALL
OR
EMAIL
 US FOR PRICING.

BOBCAD V21 Software features everything from V20, plus easy to use solids and surface machining technology.  Import your surface file or solid model.  Add a variety of basic and complex machining actions from hole drilling and engraving to surface roughing and finishing.  Verification is built-in so you can see your part being cut before sending the code to the Master Software on the CNC Jr./SUPRA Mill.
WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.

CALL
OR
EMAIL
 US FOR PRICING.
BOBCAD V21 Software Training Audio-Visual CD's
$275.00

NEXT STEP:

SHIPMENT QUOTE:  Please fill out to properly prepare a quote for the shipping of CNC Milling Machines and Milling Machines only:

SHIPMENT QUOTE FOR "CNC SUPRA" MILL:



If you prefer to arrange for pick up or contract your own freight transportation, check here:



U.S. Continental Shipment is done by freight.  Total shipping charges will be displayed on your formal quote.

Approximate costs for freight shipment from Southern California to anywhere in Continental U.S. will range from $450.00-$1,050.00.



**Fork-lift is needed to lower machine from truck and placed at desired location.**



For Residential Delivery--contact your local machinery moving company with details to transport the machine and place at your residence.  We can ship the machine to the machinery moving company for you.



International Orders must contract their own shipping/forwarding service to arrange for pick up.  The CNC Supra Mill is usually crated on international orders for $250.00 non-fumigated.   Email us for pick-up location details.



Last Step:  Complete Order Form Below:



Please see our Terms & Conditions regarding sales.  All CNC MASTERS products and accessories is backed up by our ONE YEAR LIMITED WARRANTY!  Tech Support by email at sales@cncmasters.com or phone (626) 812-8300 is available during normal business hours Monday through Friday, PST.



ORDERING FORM:

Check off your preference for FORM OF PAYMENT:



Cashier's Check or Money Order, order will be processed immediately



Personal Check or Company Check, order will be processed upon check clearance



Major Credit Card:  Visa, MC, or Discover Card only, requires a 3% surcharge and order will be processed immediately (U.S. orders Only)



Wire Transfer with a $40.00 surcharge, order will be processed upon bank confirmation.  Surcharge only applies to milling machines without CNC (Best form of payment for International Orders.)





Requested by:
Company Name:
Shipping address:
City:
State:    (California sales tax 8.25% for residents of CA only.)
Zip-code:
Country:
Phone:
Fax:
*E-mail:  *required
*Please be sure to include your fax number and email address on this order form.  A formal quote will be emailed to you today or next business day PST.
Comments:

How did you find our web site?

  • Google search

  • Yahoo search

  • Thomasnet.com

  • other web search engine,  please specify:

  • magazine display ad

  • word of mouth

After you press the "Submit Order Form" button below:

We will fax or email you a formal quote complete with shipping charges.  Once you receive your invoice, sign it, and fax back to us if you wish to pay with credit card.  Then call us at 1-877-CNC-8895 or 1-626-812-8300 during normal business hours PST to complete credit card transaction over the phone.  We accept major credit cards:  Visa, MasterCard, & American Express over the phone for your security.  Wire Transfers can also be made for International Orders.  If you choose to pay by Cashier's Check, Money Order, or Company/Personal Check, please mail the formal quote agreement along with check to:  CNC MASTERS, 738 N Loren Ave., Unit 1, Azusa, CA 91702.  Upon check clearance, allow two-three weeks to ship out your freight from our factory.  Checks payable to:  CNC MASTERS.

By placing a check here, I state that I have read, understand, and agree to the Terms and Conditions regarding this sale.
